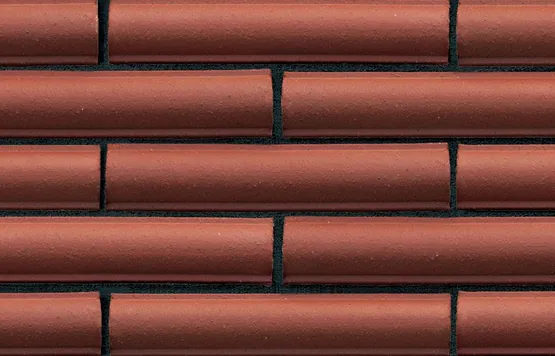

Clinker Tile Clay Tile

Item_No WY770

Material Clay Split Tile

Size 240x60x11mm, 230x52x11mm, 200x52x11mm

Usage Wall Cladding Decoration,Exterior Decoration

Clinker Tile Clay Tile introduction

Product Specification
Item NO: WY770
Size(L/W/T): ①240*60*11mm ②230*52*11mm ③200*52*11mm
Material: Natural Clay
Corner Tile: Available
Certificate: ISO/GB


Technical Specification of LOPO Clay Tile:

CHARACTERISTIC LOPO Specification Reference Standard (GB/T4100-2006)
Dimensions and surface quality
Length(%) ±1/max.±2mm±1.5/max.±2mm
Width(%) ±1/max.±2mm±1.5/max.±2mm
Thickness(%) ±10±10
Surface quality Fulfill the reference standardNo obvious flaw is visually inspected from a distance of 1 metre while the tile is hanging vertically.
Physical properties
Water absorption(%) Average:E≤63<Average E≤6;Individual≤6.5
Modulus of rupture(MPa) Average:R≥23Average R≥13; Individual≥11
Breaking strength(N) Average:S≥1000Average S≥800
Frost resistance Fulfill the reference standardNo visible damages after 100 changes of freezing and thawing.
Resistance to thermal shock Fulfill the reference standardFree from defects after 10 cycles.

Features of LOPO Clinker Tile:

◎ Natural and Fadeless Texture

◎ Green and Sustainable Material

◎ Low Maintenance

◎ Great Insulation performance

◎ Fire Resistance
