| Product Specification | |||
| Item NO. | T50150636 | Certification | CE,ASTM,GB |
| Size | 150*1800*50mm | MOQ | 1000 M |
| Color | Red | Lead Time | 35 Days |
| Surface Finish | Natural Flat | Packing | Wooden Crate |
| Material | Natural Clay | Port | Xiamen Port |
| Weight | 9 KGS/M | Payment Term | TT/LC |

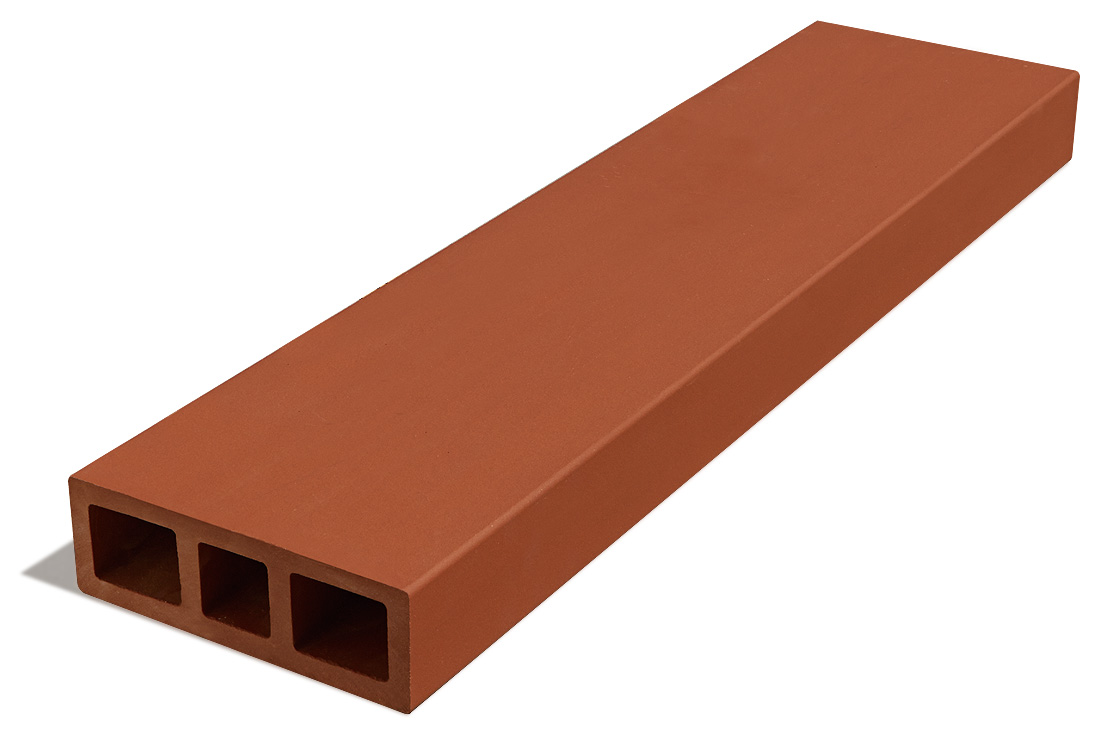

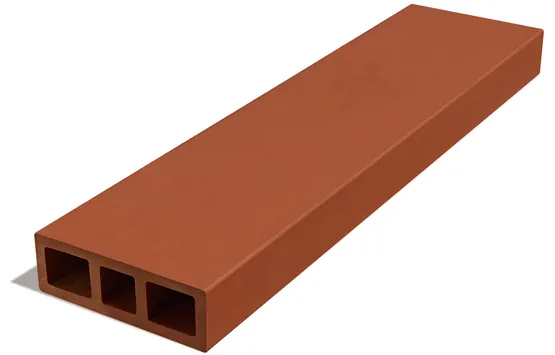

LOPO Terracotta Louver/baguette has wide range of pipe forms with square, oblong, triangle, circular cross-sections. This series product is of great functions in decorations and sun protection which is mainly applying in window areas, parapets and balcony etc. The most commonly used size is 50*50 mm, but LOPO China is capable of providing customized terracotta louver products catering for the architectural design.

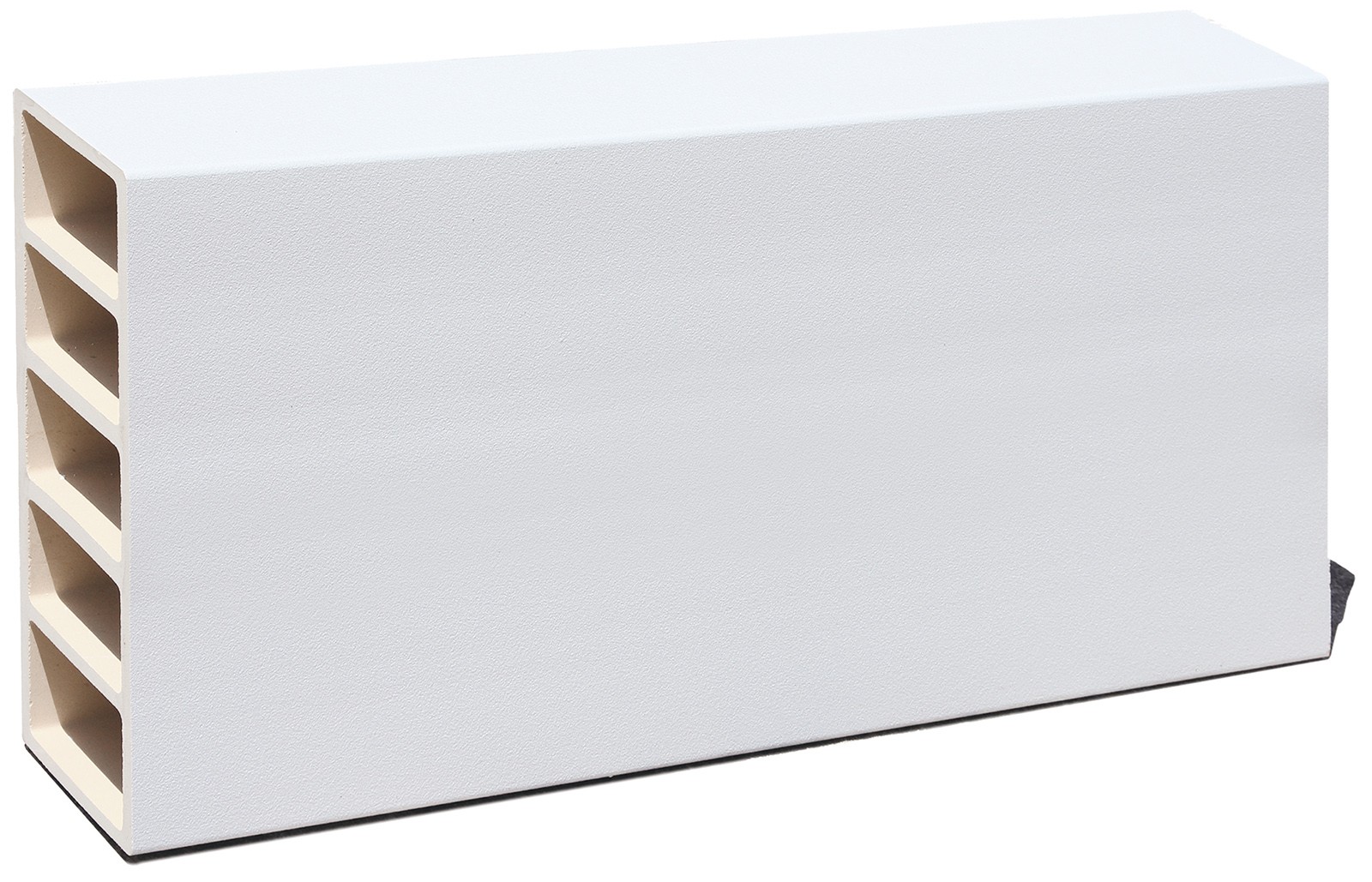

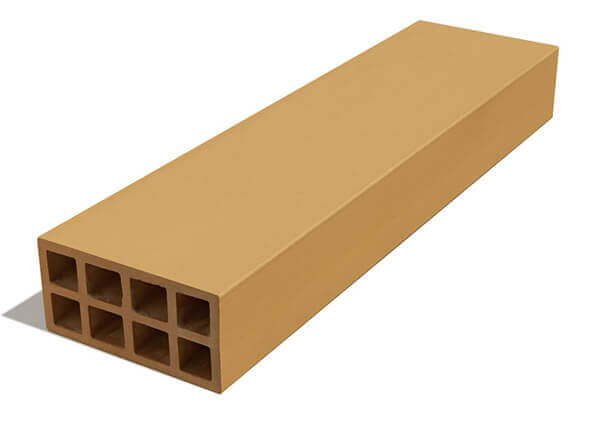

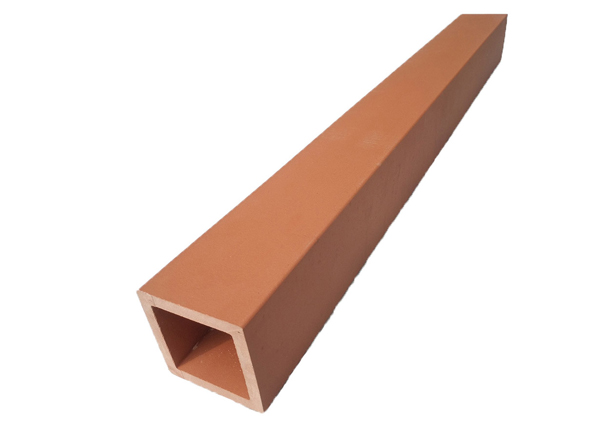

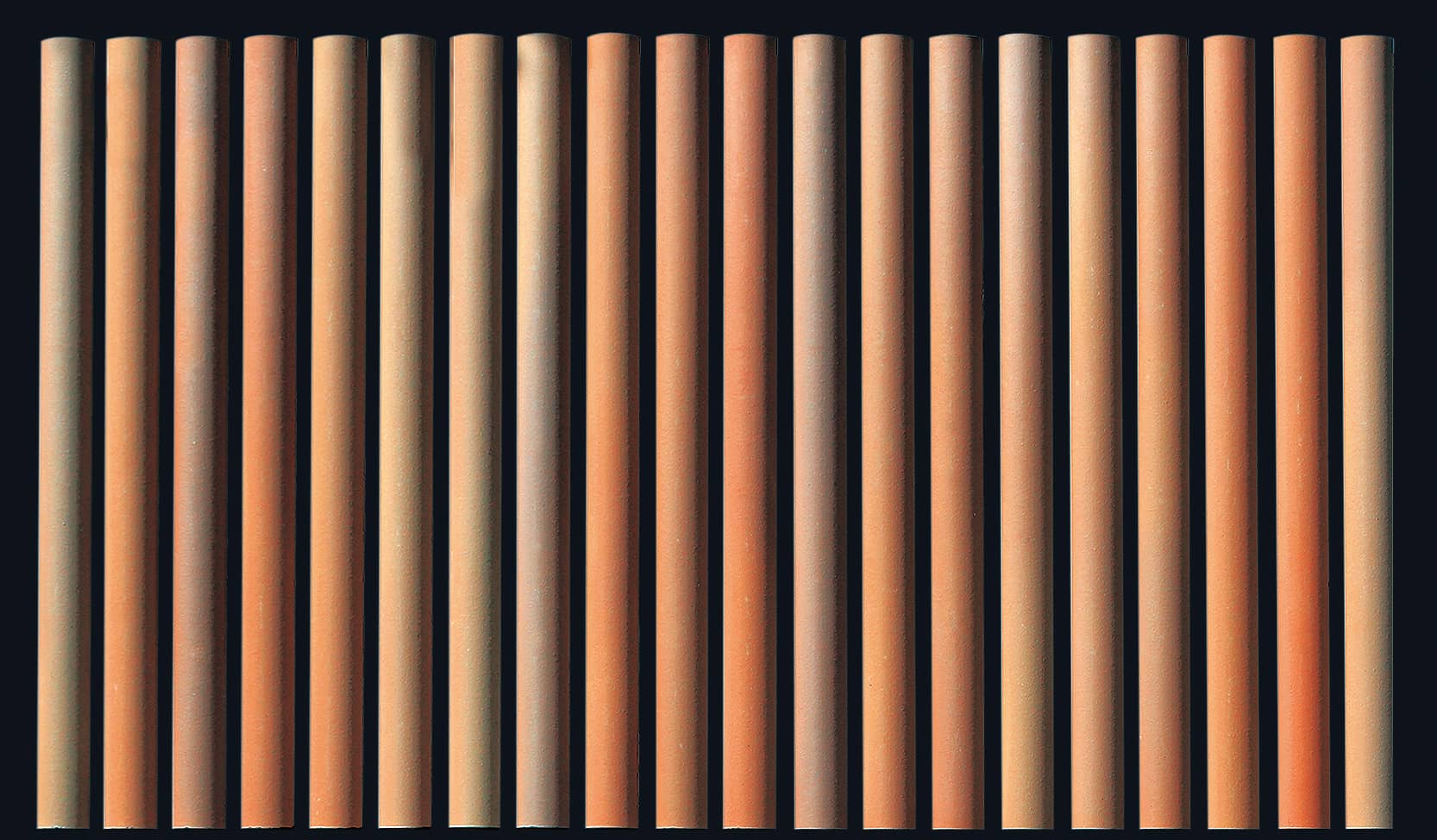

More LOPO Terracotta Louver / Baguette: Terracotta Louver | |||||
Regular Product | Color | Surface | Length | Width | Thickness |
| Red/Yellow/White/Brown/Grey | Natural/Glazed | <1800mm | 50mm | 50mm |
| Red/Yellow/White/Brown/Grey | Natural/Glazed | <1800mm | 100mm | 40mm |
| Red/Yellow/White/Brown/Grey | Natural/Glazed | <1800mm | 150mm | 50mm |
| Red/Yellow/White/Brown/Grey | Natural/Glazed | <1800mm | 180mm | 40mm |
| Red/Yellow/White/Brown/Grey | Natural/Glazed | <1800mm | 200mm | 45mm |
Customized Design | Sample/Design | Sample/Design | <1800mm | <200mm | <80mm |
LOPO Technical Specification of Terracotta Baguette:
| LOPO Technical Data Sheet | |||
| Item: LOPO Terracotta Square Baguette (Length:1000mm) | |||
| Characteristic | Specification | EN14411 Standard | Test Method |
| Dimensions and Surface Quality | |||
| Length | ±0.5% | ±2% | ISO10545-2 |
| Width | ±0.5% | ±2% | |
| Thickness | ±5% | ±10% | |
| Straightness of sides | ±0.5% | ±1% | |
| Rectangularity | ±1% | ±1% | |
| Surface Quality | Fulfilled | A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles. | |
| Physical Properties | |||
| Water Absorption | 3-7.5% | 6-10% | ISO10545-3 |
| Breaking Strength | Average>23000 N | ≥750 N | ISO10545-4 |
| Abraision Resistance | <460 mm³ | Max. 1062 mm³ | ISO10545-6 |
| Resistance to thermal shock | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-9 |
| Freeze-thaw Resistance | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-12 |
| Moisture Expansion | <0.02% | Declared value | ISO10545-10 |
| Reaction to Fire | Class A1 | Class A1 or A1FL | |
| Chemical Properties | |||
| Chemical Resistance | |||
| Low Concentrations of Acids and Alkalis | ULA | Declared value | ISO10545-13 |
• Environmentally-friendly
and Sustainable; • Natural color (fadeless); • Stable and Durable (Frost resistance up to
150 cycles); • Non-flammable; • With Sound Insulation Properties and Thermal
Insulation Properties; • Low Maintenance;
LOPO Terracotta Baguette Features & Benefits:
