Product Specification | |||
Item NO. | FD3018003 | Certification | CE,ASTM,GB |
Size | 300*600*18mm | MOQ | 1500 SQM |
Color | White | Lead Time | 35 days |
Surface Finish | Natural Flat | Packing | Wooden Crate |
Material | Natural Clay | Port | Xiamen Port |
Weight | 31 KGS/SQM | Payment Term | TT/LC |

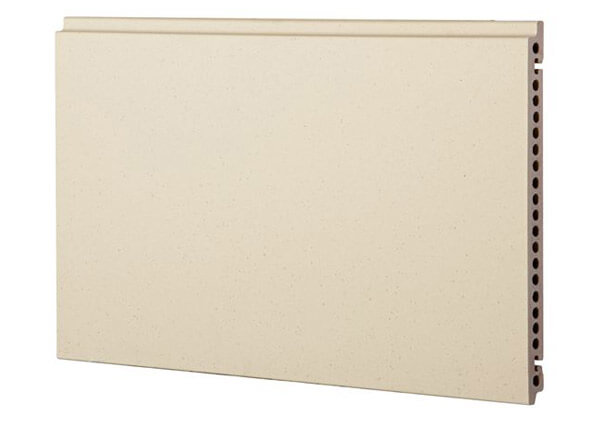

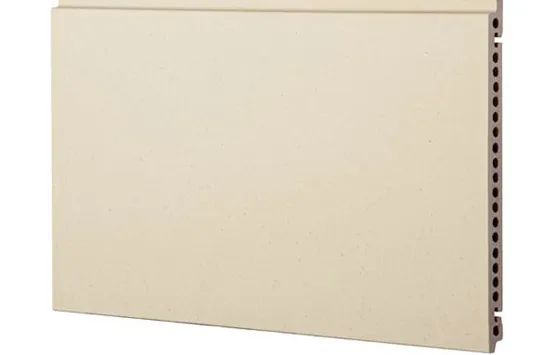

LOPO Terracotta Facade Panel with flat surface is the most classic panel product of LOPO China. The texture of this series is fine and smooth due to the great clay material of south China. Under high-temperature (above 1200℃) firing, the clay material are turning to be a very natural texture.
More LOPO Terracotta Panel with flat finish:
Terracotta Panel | ||
Standard Product | Customized Design | |
Color | Red/Yellow/White/Brown/Grey | Available on Request |
Surface | Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated | Available on Request |
Length | 600mm/900mm/1000mm/1200mm | Max.1800mm |
Width | 200mm/300mm/450mm/500mm | Max.600mm |
Thickness | 10mm/12mm/16mm/18mm/22mm/24mm/30mm | Max.50mm |
Technical Specification of LOPO Facade Panels:
LOPO Technical Data Sheet | |||
Item: LOPO Terracotta Facade Panel (Thickness:18mm) | |||
Characteristic | Specification | EN14411 Standard | Test Method |
Dimensions/Surface Quality | |||
Length | ±1%/max.±1mm | ±2% | ISO10545-2 |
Width | ±1%/max.±1.5mm | ±2% | |
Thickness | ±10%/max.±1.0mm | ±10% | |
Straightness of Sides | ±0.5%/max.(L:±2mm;W:±0.5mm) | ±1% | |
Rectangularity | ±0.5%/max.±1mm | ±1% | |
Surface Flatness | |||
Centre Curvature | ±1% | ±1% | |
Edge Curvature | ±1% | ±1% | |
Warpage | ±1% | ±1.5% | |
Surface Quality | Fulfilled | A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles. | |
Physical Properties | |||
Water Absorption | 3-7.5% | 6-10% | ISO10545-3 |
Breaking Strength | Average>2700 N | ≥750 N | ISO10545-4 |
Modulus of Rupture | Average>15 MPa | Average≥9 MPa | ISO10545-4 |
Abraision Resistance | <460 mm³ | Max. 1062 mm³ | ISO10545-6 |
Resistance to Thermal Shock | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-9 |
Freeze-thaw Resistance | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-12 |
Moisture Expansion | <0.02% | Declared value | ISO10545-10 |
Reaction to Fire | Class A1 | Class A1 or A1FL | |
Chemical Properties | |||
Chemical Resistance | |||
Low Concentrations of Acids and Alkalis | ULA | Declared value | ISO10545-13 |
LOPO Terracotta Facade Panel Features & Benefits:
• Environmentally-friendly and Sustainable;
• Natural color (fadeless);
• Stable and Durable (Frost resistance up to 150 cycles);
• Non-flammable;
• With Sound Insulation Properties and Thermal Insulation Properties;
• Low Maintenance;
