ProductsBack FixingPanel T18mm Fixing

Fixing Clipper

Item_No Fixing Clip (Adjustable)

Material Extruded Aluminum Alloy

Size Standard or Customized

Usage Installation of Terracotta Panel (THK:18mm)

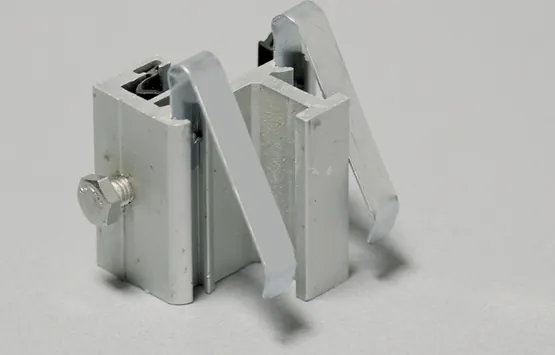

Fixing Clipper introduction


This fixing clip is applied to the back fixing system of LOPO Terracotta Panel—THK.18mm series. This series of panel have existing extruded slots in the back which allow clips to be inserted and also fixed on the aluminum horizontal holders. Four clips are needed to install a piece of panel and the upper 2 clips are normally with adjustable screws to achieve appropriate levelness.

The supporting system for terracotta ventilated facade is custom designed and engineered based on features of the architectural structure and facades products. LOPO is able to provide professional technical support, mounting systems and fixing parts for specific projects. The fixing components provided by LOPO are made of high-quality metal (including aluminum, galvanized steel, stainless steel etc.) and EPDM gasket, which are of sufficient strength, corrosion resistance and ability to withstand temperature changes.

The fixing components shown represent only a few of our standard product. Custom designed components and supporting systems for specific facade structure or special shapes and profile of terracotta tile can be provided upon request.
