ProductsTerracotta BaguettesTerracotta Louver

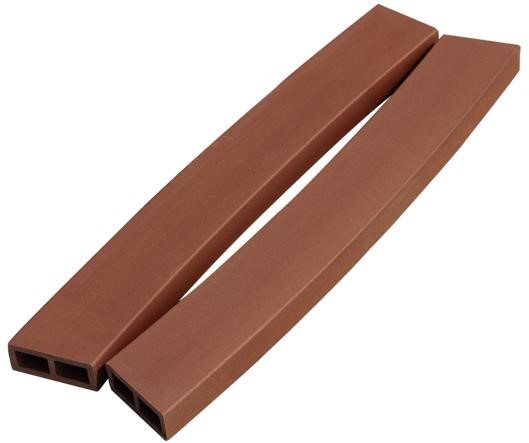

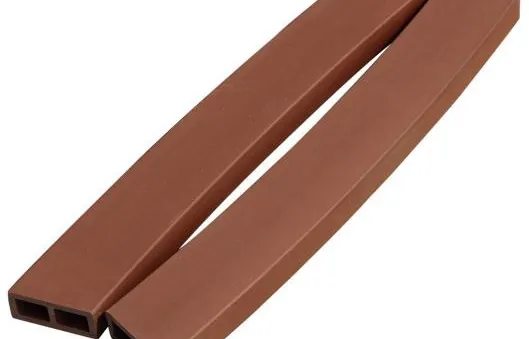

Terracotta Louver

Item_No TS40100768

Material Natural Clay, Eco Green Materials,

Size 40*1800*100mm

Usage Wall Facade Cladding Decoration

Terracotta Louver introduction

Product Specification
Item NO.TS40100768CertificationCE,ASTM,GB
Size40*1800*100mmMOQ1000 M
ColorBrownLead Time35 Days
Surface FinishNatural FlatPackingWooden Crate
MaterialNatural ClayPortXiamen Port
Weight3.4 KGS/MPayment TermTT/LC

LOPO Terracotta Louver/baguette has wide range of pipe forms with square, oblong, triangle, circular cross-sections. This series product is of great functions in decorations and sun protection which is mainly applying in window areas, parapets and balcony etc. The most commonly used size is 50*50 mm, but LOPO China is capable of providing customized terracotta louver products catering for the architectural design.


More LOPO Terracotta Louver / Baguette:

Terracotta Louver

Regular Product

Color

Surface

Length

Width

Thickness

Red/Yellow/White/Brown/Grey

Natural/Glazed

<1800mm

50mm

50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

<1800mm

100mm

40mm
50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

<1800mm

150mm
100mm

50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

<1800mm

180mm

40mm
50mm

Red/Yellow/White/Brown/Grey

Natural/Glazed

<1800mm

200mm

45mm

Customized Design

Sample/Design

Sample/Design

<1800mm

<200mm

<80mm

LOPO Technical Specification of Terracotta Baguette:

LOPO Technical Data Sheet
Item: LOPO Terracotta Square Baguette (Length:1000mm)
Characteristic Specification EN14411 Standard Test Method
Dimensions and Surface Quality


Length±0.5%±2%ISO10545-2
Width±0.5%±2%
Thickness±5%±10%
Straightness of sides±0.5%±1%
Rectangularity±1%±1%
Surface QualityFulfilledA minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties


Water Absorption3-7.5%6-10%ISO10545-3
Breaking StrengthAverage>23000 N≥750 NISO10545-4
Abraision Resistance<460 mm³Max. 1062 mm³ISO10545-6
Resistance to thermal shockFulfilledPass according to EN ISO 10545-1ISO10545-9
Freeze-thaw ResistanceFulfilledPass according to EN ISO 10545-1ISO10545-12
Moisture Expansion<0.02%Declared valueISO10545-10
Reaction to FireClass A1Class A1 or A1FL
Chemical Properties


Chemical Resistance


Low Concentrations of Acids and Alkalis ULADeclared valueISO10545-13


LOPO Terracotta Baguette Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
