| Product Specification | |
| Item NO: | WH566 |
| Size(L/W/T): | ①240*60*11mm ②230*52*11mm ③200*52*11mm |
| Material: | Natural Clay |
| Corner Tile: | Available |
| Certificate: | ISO/GB |

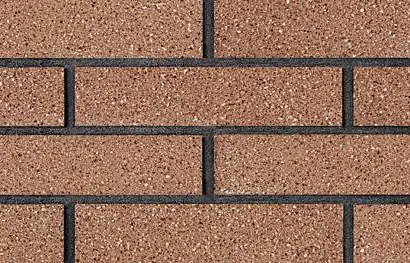

Technical Specification of LOPO Clay Tile:
| CHARACTERISTIC | LOPO Specification | Reference Standard (GB/T4100-2006) |
| Dimensions and surface quality | ||
| Length(%) | ±1/max.±2mm | ±1.5/max.±2mm |
| Width(%) | ±1/max.±2mm | ±1.5/max.±2mm |
| Thickness(%) | ±10 | ±10 |
| Surface quality | Fulfill the reference standard | No obvious flaw is visually inspected from a distance of 1 metre while the tile is hanging vertically. |
| Physical properties | ||
| Water absorption(%) | Average:E≤6 | 3＜Average E≤6；Individual≤6.5 |
| Modulus of rupture（MPa） | Average:R≥23 | Average R≥13; Individual≥11 |
| Breaking strength（N） | Average:S≥1000 | Average S≥800 |
| Frost resistance | Fulfill the reference standard | No visible damages after 100 changes of freezing and thawing. |
| Resistance to thermal shock | Fulfill the reference standard | Free from defects after 10 cycles. |
Features of LOPO Clay Tile:
◎ Natural and Fadeless Texture
◎ Green and Sustainable Material
◎ Low Maintenance
◎ Great Insulation performance
◎ Fire Resistance
