| Product Specification | |||
| Item NO. | PY880 | Certification | CE,ASTM,GB |
| Size | Customized | MOQ | 1500 SQM |
| Color | White | Lead Time | 35 days |
| Surface Finish | Glazed | Packing | Wooden Crate |
| Material | Natural Clay | Port | Xiamen Port |
| Weight | 31 KGS/SQM | Payment Term | TT/LC |

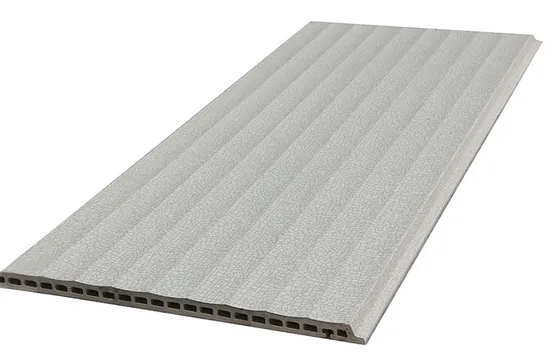

Porcelain glaze finish with many cracks of different size, length, shape and spacing is called cracked glaze finish. This kind of surface was originally regarded as defected craftsmanship, but was later intentionally used as a special surface to decorate porcelain, for example in ancient China Geyao porcelain was famous for its cracked glaze finish style.
LOPO China was inspired by traditional Chinese cracked glaze finish porcelain, and thus developed LOPO cracked glaze finish Terracotta Panels. This product has a fine grain cracked glaze finish, and adorns the elegance of Chinese porcelain on its classic white, green and blue glaze finish.
More LOPO Terracotta Panel with glazed surface:
Terracotta Panel | ||
Standard Product | Customized Design | |
Color | Red/Yellow/White/Brown/Grey | Available on Request |
Surface | Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated | Available on Request |
Length | 600mm/900mm/1000mm/1200mm | Max.1800mm |
Width | 200mm/300mm/450mm/500mm | Max.600mm |
Thickness | 10mm/12mm/16mm/18mm/22mm/24mm/30mm | Max.50mm |
Technical Specification of LOPO Facade Panels:
LOPO Technical Data Sheet | |||
| Item: LOPO Terracotta Facade Panel (Thickness:18mm) | |||
| Characteristic | Specification | EN14411 Standard | Test Method |
| Dimensions/Surface Quality | |||
| Length | ±1%/max.±1mm | ±2% | ISO10545-2 |
| Width | ±1%/max.±1.5mm | ±2% | |
| Thickness | ±10%/max.±1.0mm | ±10% | |
| Straightness of Sides | ±0.5%/max.(L:±2mm;W:±0.5mm) | ±1% | |
| Rectangularity | ±0.5%/max.±1mm | ±1% | |
| Surface Flatness | |||
| Centre Curvature | ±1% | ±1% | |
| Edge Curvature | ±1% | ±1% | |
| Warpage | ±1% | ±1.5% | |
| Surface Quality | Fulfilled | A minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles. | |
| Physical Properties | |||
| Water Absorption | 3-7.5% | 6-10% | ISO10545-3 |
| Breaking Strength | Average>2700 N | ≥750 N | ISO10545-4 |
| Modulus of Rupture | Average>15 MPa | Average≥9 MPa | ISO10545-4 |
| Abraision Resistance | <460 mm³ | Max. 1062 mm³ | ISO10545-6 |
| Resistance to Thermal Shock | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-9 |
| Freeze-thaw Resistance | Fulfilled | Pass according to EN ISO 10545-1 | ISO10545-12 |
| Moisture Expansion | <0.02% | Declared value | ISO10545-10 |
| Reaction to Fire | Class A1 | Class A1 or A1FL | |
| Chemical Properties | |||
| Chemical Resistance | |||
| Low Concentrations of Acids and Alkalis | ULA | Declared value | ISO10545-13 |
LOPO Terracotta Facade Panel Features & Benefits:
• Environmentally-friendly and Sustainable;
• Natural color (fadeless);
• Stable and Durable (Frost resistance up to 150 cycles);
• Non-flammable;
• With Sound Insulation Properties and Thermal Insulation Properties;
• Low Maintenance;
