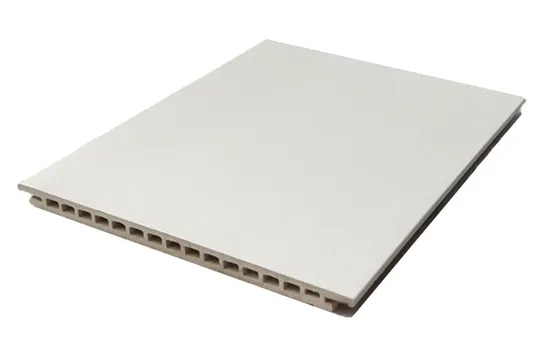

Terracotta rainscreen

Item_No FY3924003

Material Natural Clay, Eco Green Materials

Size 392*774*24mm

Usage Wall Facade Cladding Decoration

Terracotta rainscreen introduction

Product Specification
Item NO.FY3924003CertificationCE,ASTM,GB
Size392*774*24mmMOQ1500 SQM
ColorWhiteLead Time35 days
Surface FinishGlazedPackingWooden Crate
MaterialNatural ClayPortXiamen Port
Weight40 KGS/SQMPayment TermTT/LC

LOPO Facade panels with glazed surface is of a glossy and bright texture representing a morden and lively visual effects. Different colors matched together artfully can creat differnt style of a building and realize the dreamy idea of Architectural designers. LOPO Terracotta Facade Panel with glazed surface can perfectly meet various color requirments of architectural design.

More LOPO Terracotta Panel with glazed surface:

Terracotta Panel


Standard Product

Customized Design

Color

Red/Yellow/White/Brown/Grey

Available on Request

Surface

Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated

Available on Request

Length

600mm/900mm/1000mm/1200mm

Max.1800mm

Width

200mm/300mm/450mm/500mm

Max.600mm

Thickness

10mm/12mm/16mm/18mm/22mm/24mm/30mm

Max.50mm



Technical Specification of LOPO Facade Panels:

LOPO Technical Data Sheet

Item: LOPO Terracotta Facade Panel (Thickness:18mm)
CharacteristicSpecificationEN14411 StandardTest Method
Dimensions/Surface Quality


Length±1%/max.±1mm±2%ISO10545-2
Width±1%/max.±1.5mm±2%
Thickness±10%/max.±1.0mm±10%
Straightness of Sides±0.5%/max.(L:±2mm;W:±0.5mm)±1%
Rectangularity±0.5%/max.±1mm±1%
Surface Flatness

Centre Curvature±1%±1%
Edge Curvature±1%±1%
Warpage±1%±1.5%
Surface QualityFulfilledA minimum of 95% shall be free from visible defects that would impair the appearance of a major area of tiles.
Physical Properties


Water Absorption3-7.5%6-10%ISO10545-3
Breaking StrengthAverage>2700 N≥750 NISO10545-4
Modulus of RuptureAverage>15 MPaAverage≥9 MPaISO10545-4
Abraision Resistance<460 mm³Max. 1062 mm³ISO10545-6
Resistance to Thermal ShockFulfilledPass according to EN ISO 10545-1ISO10545-9
Freeze-thaw ResistanceFulfilledPass according to EN ISO 10545-1ISO10545-12
Moisture Expansion<0.02%Declared valueISO10545-10
Reaction to FireClass A1Class A1 or A1FL
Chemical Properties


Chemical Resistance


Low Concentrations of Acids and AlkalisULADeclared valueISO10545-13


LOPO Terracotta Facade Panel Features & Benefits:

Environmentally-friendly and Sustainable;

• Natural color (fadeless);

• Stable and Durable (Frost resistance up to 150 cycles);

• Non-flammable;

• With Sound Insulation Properties and Thermal Insulation Properties;

• Low Maintenance;
